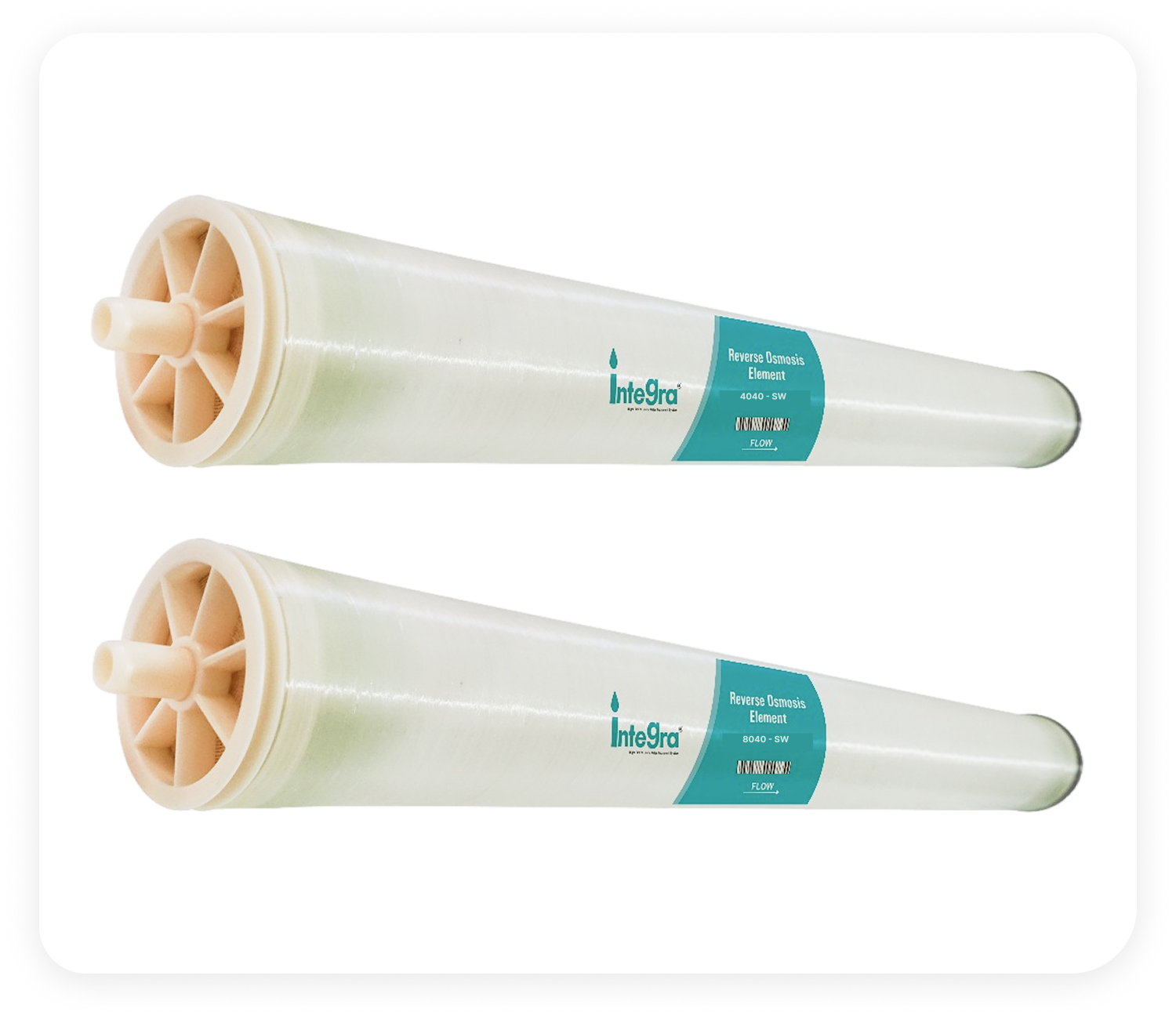

Extended Area Seawater

Reverse Osmosis Element

Extended Area Seawater

Reverse Osmosis Element

Reverse Osmosis Sea Water (RO-SW) membranes are designed for high rejection of Salts and Boron in seawater applications. Our SW-4040 and SW-8040 models offer superior performance in extended area operations, providing exceptional Salt and Boron rejection capabilities. Explore the specifications and features of both models below.

Extended Area Seawater Reverse Osmosis Element

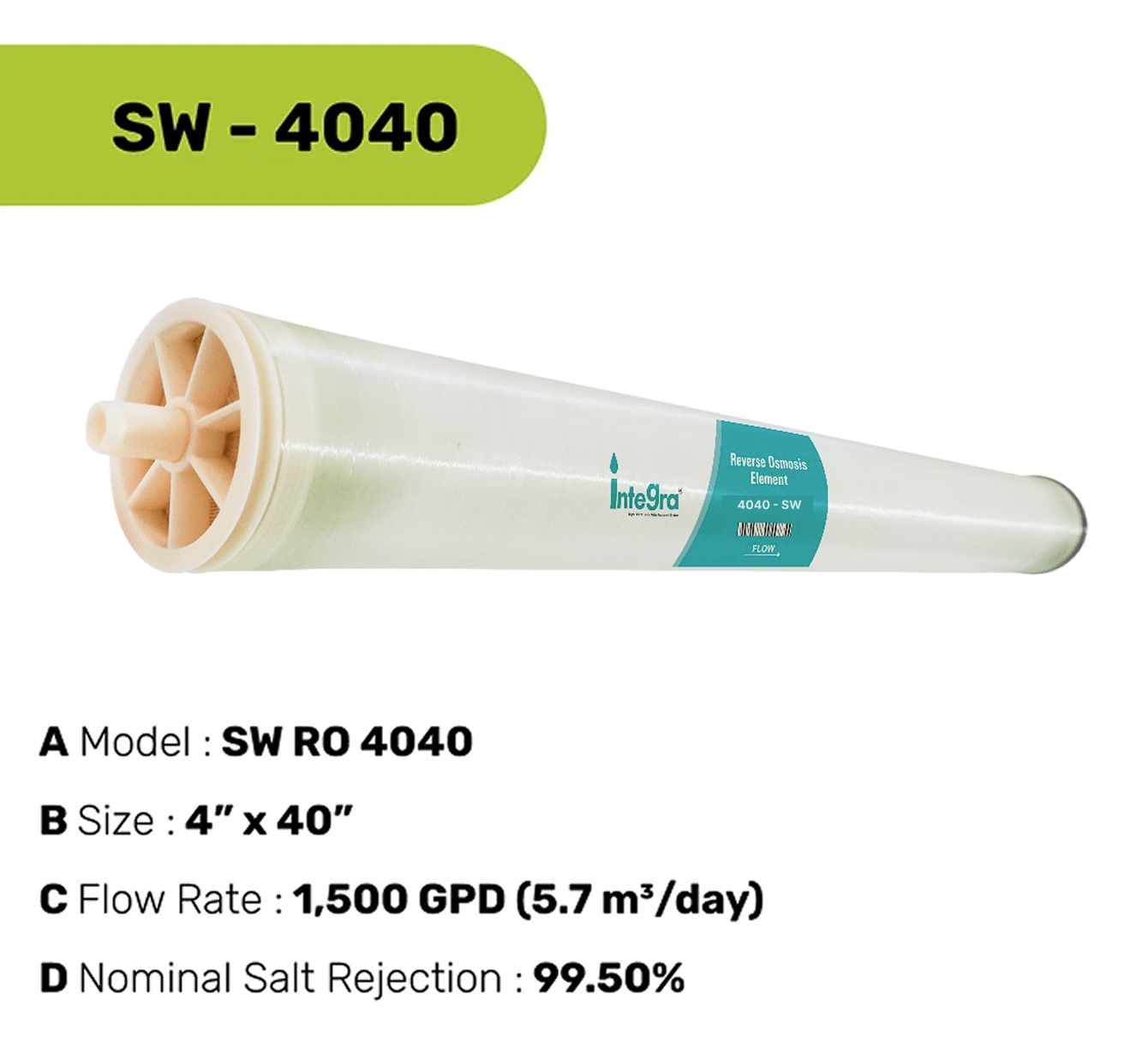

SW - 4040

  1. Tested under conditions: 32,000.0 ppm NaCl, 800.0 psig, 25.0°C, and 15.0% recovery.
  2. Flow rates may vary by ±15.0%.
  3. Minimum salt rejection: 99%.
  4. Boron rejection: 92.0% at 5.0 mg/L feed concentration under the above test conditions.
  5. Each box includes one interconnector with O-rings and a brine seal.
  6. Compatible with nominal 4.0-inch (100.0 mm) I.D. pressure vessels.

Max. Pressure Drop per Element
Max. Pressure Drop per Element: 15.0 PSI (0.1 MPa)
Membrane Area
Membrane Area: 74.0 ft² (6.8 m²)
Max. Operating Pressure
Max. Operating Pressure: 800.0 PSI
Max. Feed Flow Rate
Max. Feed Flow Rate: 18.0 GPM (4.09 m³/hr)
Min. Concentrate Flow Rate
Min. Concentrate Flow Rate: 4.0 GPM (0.91 m³/hr)
Max. Operating Temperature
Max. Operating Temperature: 45.0°C
Operating pH Range
Operating pH Range: 2.0–11.0
CIP pH Range
CIP pH Range: 1.0–13.0
Max. Turbidity
Max. Turbidity: 1.0 NTU
Max. SDI (15 min)
Max. SDI (15 min): 5.0
Max. Chlorine Concentration
Max. Chlorine Concentration: < 0.1 ppm

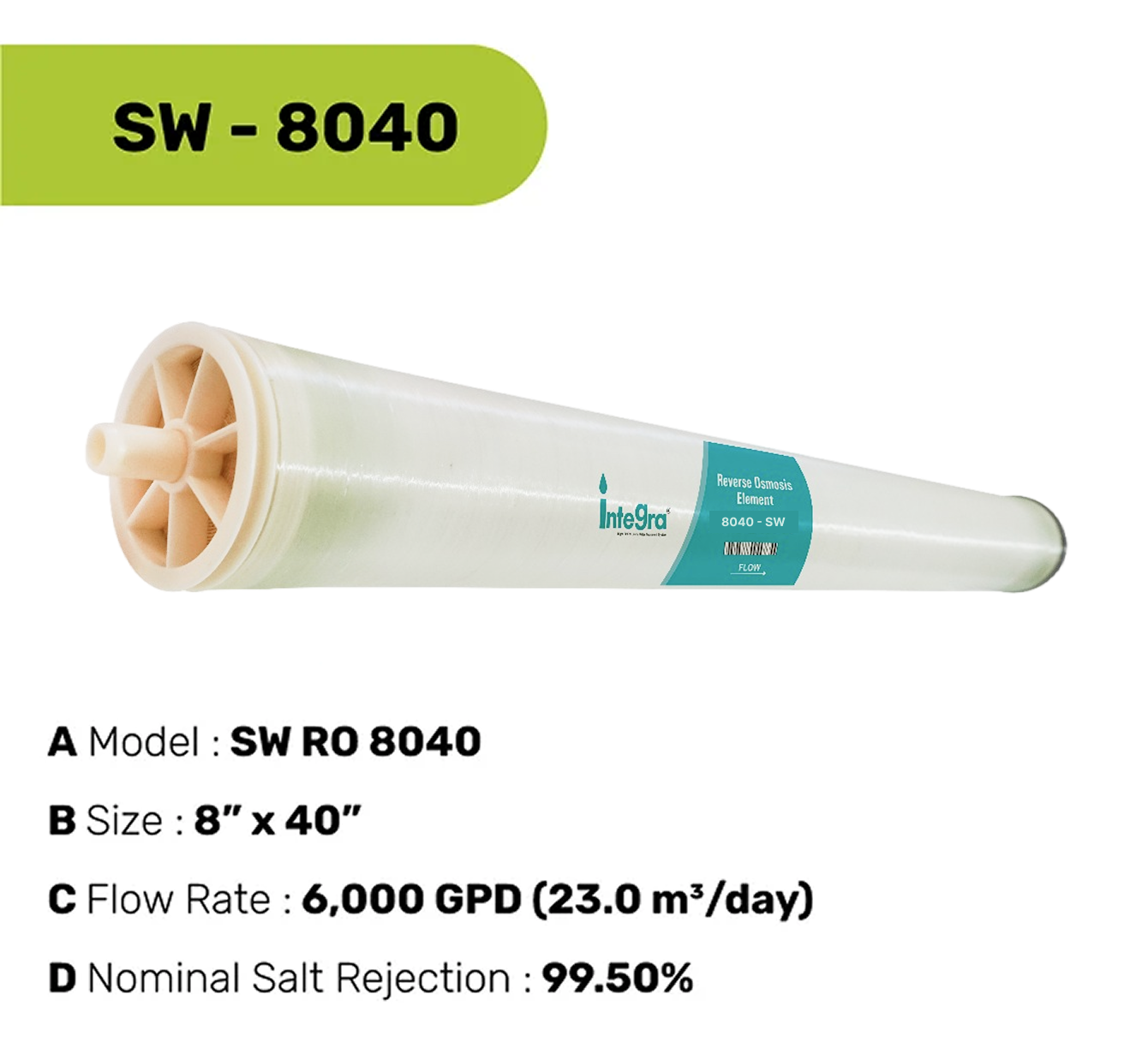

SW - 8040

  1. Tested under conditions: 32,000.0 ppm NaCl, 800.0 psig, 25.0°C, and 15.0% recovery.
  2. Flow rates may vary by ±15.0%.
  3. Minimum salt rejection: 99%.
  4. Boron rejection: 92.0% at 5.0 mg/L feed concentration under the above test conditions.
  5. Each box includes one interconnector with O-rings and a brine seal.
  6. Compatible with nominal 8.0-inch (200.0 mm) I.D. pressure vessels.

Max. Pressure Drop per Element
Max. Pressure Drop per Element: 15.0 PSI (0.1 MPa)
Membrane Area
Membrane Area: 374.0 ft² (35.2 m²)
Max. Operating Pressure
Max. Operating Pressure: 800.0 PSI
Max. Feed Flow Rate
Max. Feed Flow Rate: 72.0 GPM (16.0 m³/hr)
Min. Concentrate Flow Rate
Min. Concentrate Flow Rate: 16.0 GPM(4.5 m³/hr)
Max. Operating Temperature
Max. Operating Temperature: 45.0°C
Operating pH Range
Operating pH Range: 2.0–11.0
CIP pH Range
CIP pH Range: 1.0–13.0
Max. Turbidity
Max. Turbidity: 1.0 NTU
Max. SDI (15 min)
Max. SDI (15 min): 5.0
Max. Chlorine Concentration
Max. Chlorine Concentration: < 0.1 ppm

General

Handling Procedures

General

Handling Procedures

  • Store elements dry at room temperature (7.0–32.0°C; 40.0–95.0°F), avoiding direct sunlight.
  • Elements should remain immersed in a preservative solution during storage, shipping, and system shutdowns to prevent biological growth and freezing. A 1.0% solution of sodium bisulfite or sodium metabisulfite (food grade) is used for short-term storage.
  • Always keep the elements moist after their initial wetting.
  • Avoid sudden pressure and flow spikes.
  • Use only chemicals compatible with membrane elements and components, as incompatible chemicals may void the element’s warranty.
  • Ensure permeate pressure is always equal to or lower than feed/concentrate pressure, as back pressure can damage the element and void the warranty.

* Permeate pressure must always be equal to or less than the feed /concentrate pressure. Back pressure damage will void the limited warranty.
