Precision in Every Drop:

map Dosing Pump

Precision in Every Drop:

map Dosing Pump

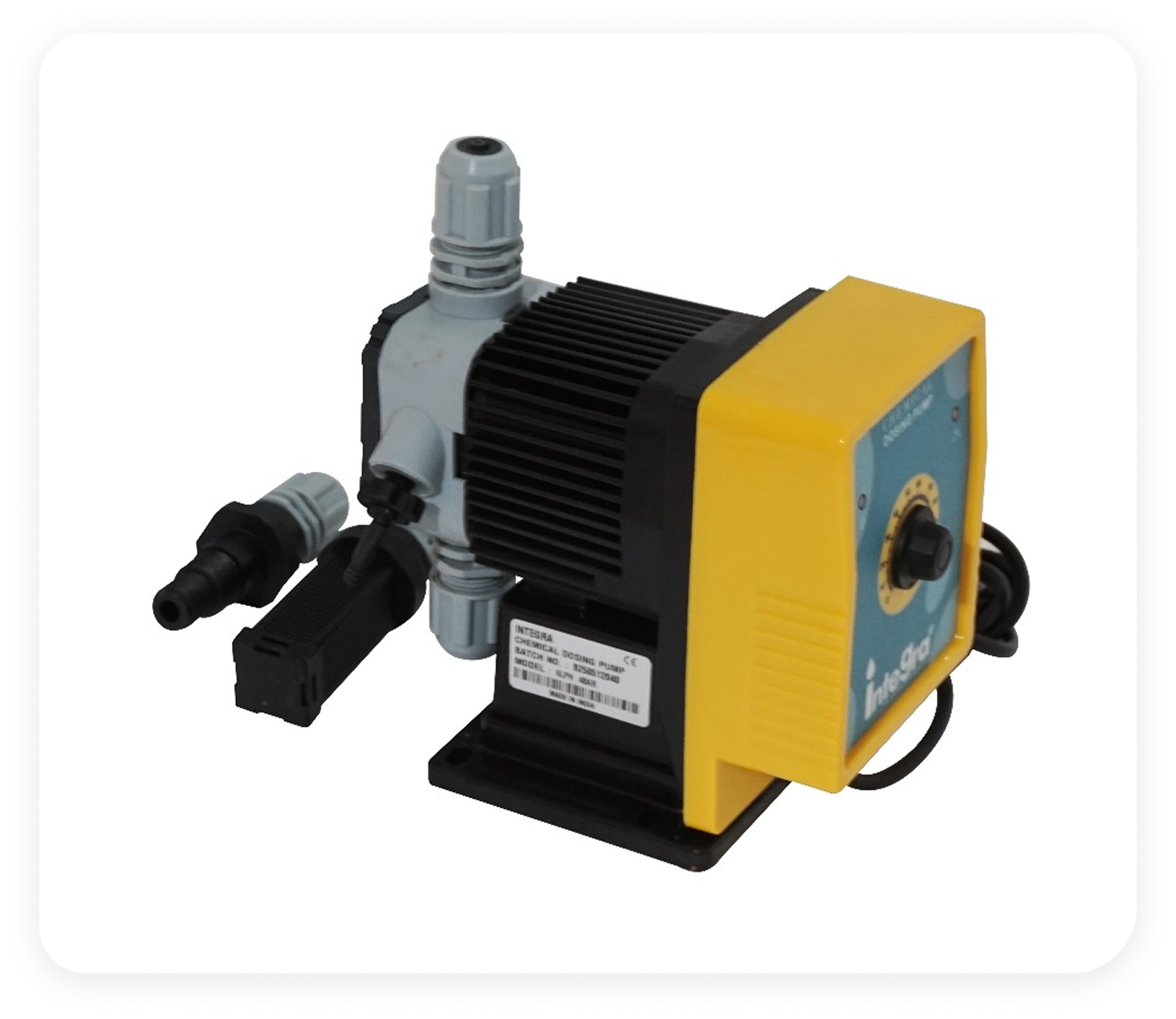

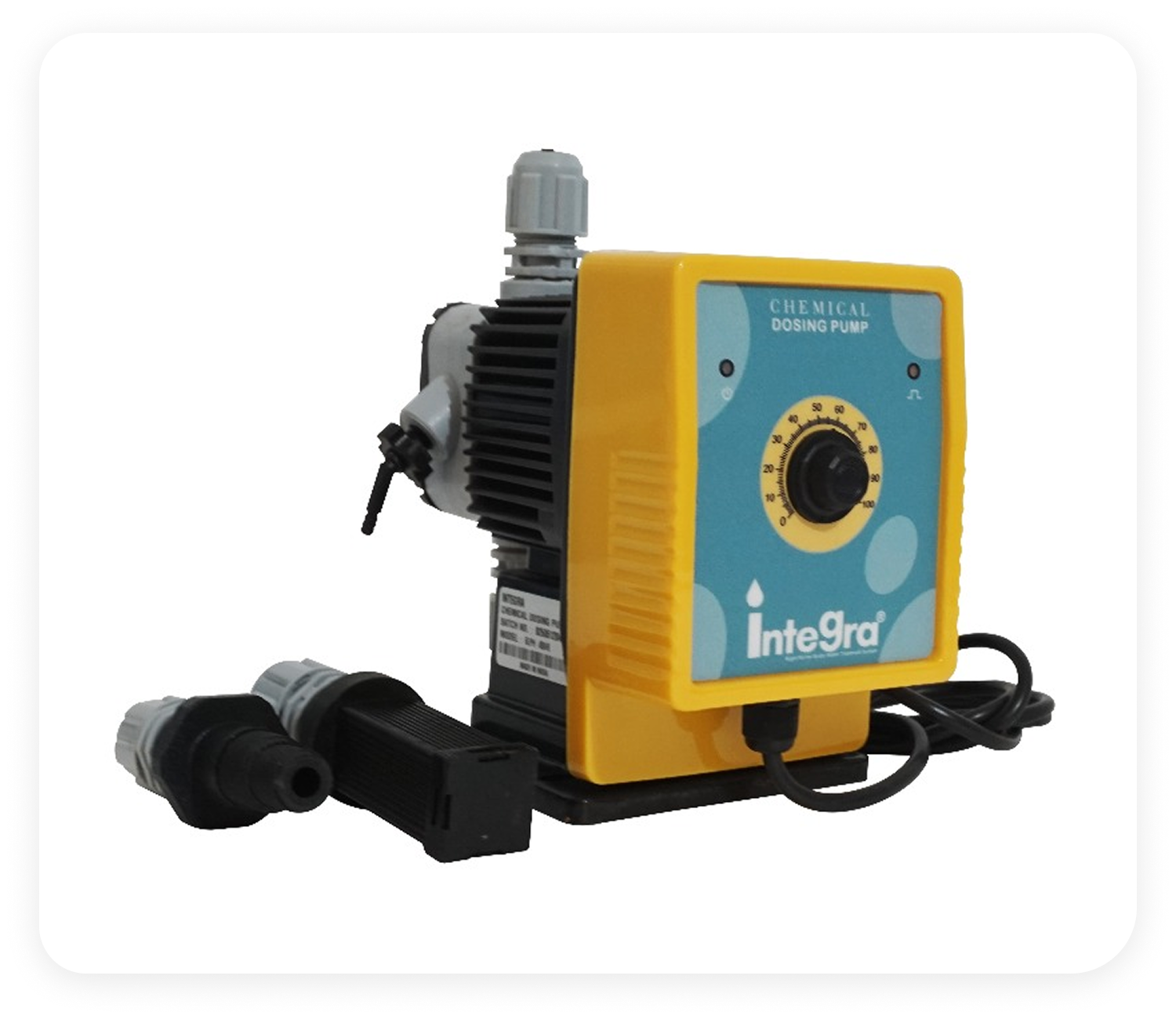

Integra’s Dosing Pump stands at the forefront of precision and reliability, crafted to meet the rigorous demands of modern industries. Whether in continuous or intermittent use, this pump offers unmatched flexibility.

Built from corrosion-resistant materials, it ensures long-lasting performance and durability, even in the harshest environments. Its compact design makes installation and maintenance a breeze, while the energy-efficient motor minimizes power consumption.

Available in multiple voltage options, it’s adaptable to various regions and operates quietly, maintaining noise levels well below industry standards. With a range of models tailored to different flow rates and power needs, Innoflare has the perfect solution for every application.

Technical Features

Mechanical and Electrical
High exchange capacity
Operating Type

High Accurate Digital Display, Low Level Sensor, Dry Run Protection, Aux Output For Further Automation.

Uniform particle size with good hydraulic characteristics
Electrical

230.0 (+/-35.0%)
50.0 HZ
IP   65.0

High mechanical strength
Sound

dB < 60.0

Good thermo-tolerant characteristics
Mechanical

0.2-2.0 LPH
7.0 Bar
Upto 400.0 SPM

MOC - Wetted Parts
IDP+

Head, Injection & Foot Valve
PP GF/N GF

Tube
6/4mm LDPE/Nylon

Seal
NBR

Diaphragm
PTFE

HA IDP+

Head, Injection & Foot Valve
PVDF

Tube
6/4mm PVDF

Seal
NBR

Diaphragm
PTFE

Solution Compatibility
IDP+

To Dose Low And Average Concentrated pH Solution.

HA IDP+

To Dose Highly Acidic Or Basic Concentrated pH Solution.

Applications

Chemical Industries
Chemical Industries
Textile
Textile
Water Treatment
Water Treatment
Waste Water Treatment
Waste Water Treatment
Laboratory & Analysis
Laboratory & Analysis
Swimming Pools
Swimming Pools
Drinking Water
Drinking Water
Pharmaceuticals
Pharmaceuticals
Disinfection
Disinfection
Reverse Osmosis
Reverse Osmosis
Dyes & Intermediates
Dyes & Intermediates
